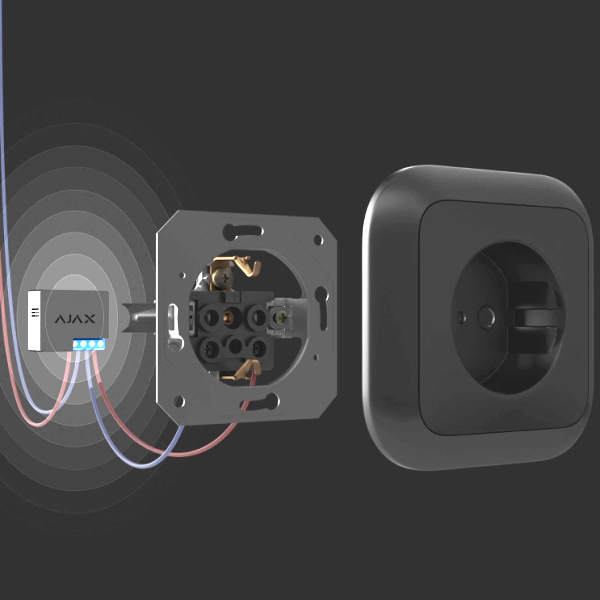

// Installation method: Into wall plate Compatibility: Operates with all Ajax hubs, and range extenders Actuating element: Relay Voltage protection: For 230 V mains: max — 264 V, min — 161 V For 110 V mains: max — 126 V, min — 77 V Relay service life: 200,000 switch-ons Maximum load current: 13 A Maximum current protection: Yes (13 A) Maximum temperature protection: >65°C in the wall plate Permissible power: Resistive load at 230 V — up to 3 kW Resistive load at 110 V — up to 1.5 kW Electric power meter function: Available Energy consumption parameter check: Current, voltage, power consumption Alarm signal delivery time: 0.15 s Power supply: 110−230 V±10% 50/60 Hz Operation modes: Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 5, 2020) Bistable Contact state: Normally open; Normally closed Adjustable pulse duration (firmware version 5.54.1.0 or higher): 0.5–255 sec Operating temperature range: From 0°С to +64°С Permissible humidity: Up to 75% Protection class of body: IP20 Remote setting and testing: +
