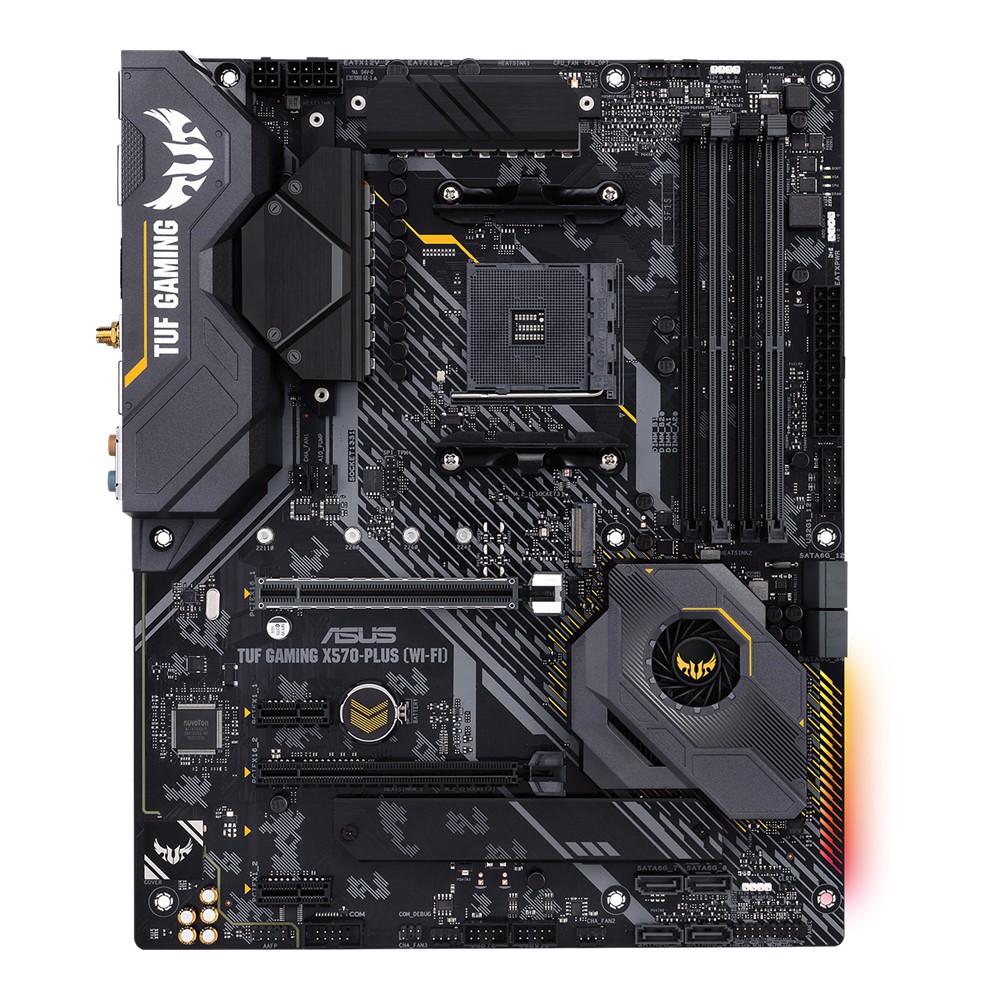

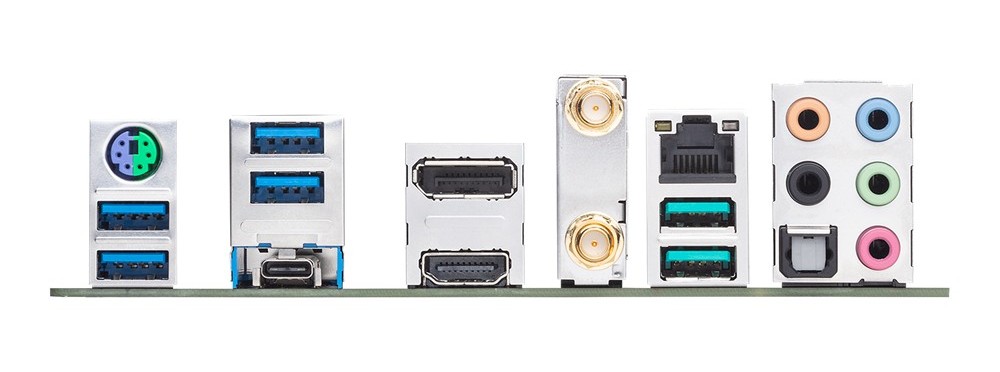

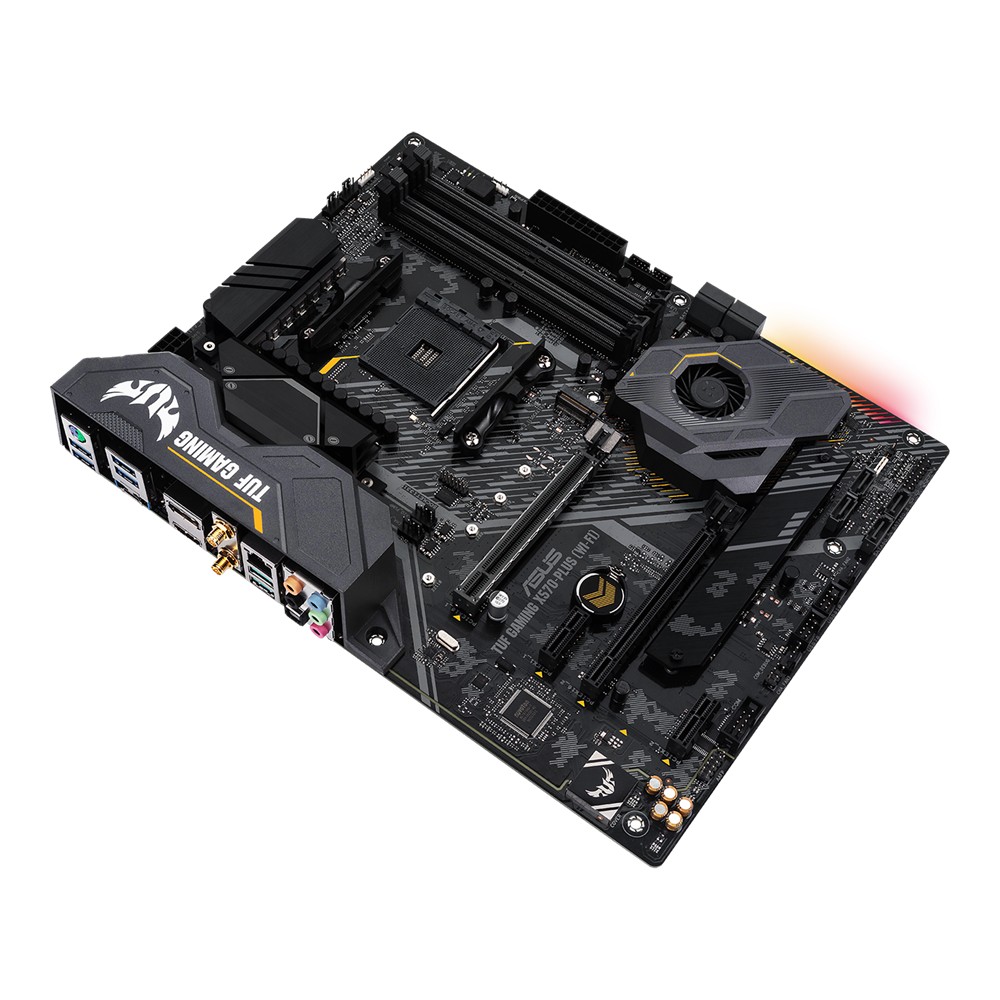

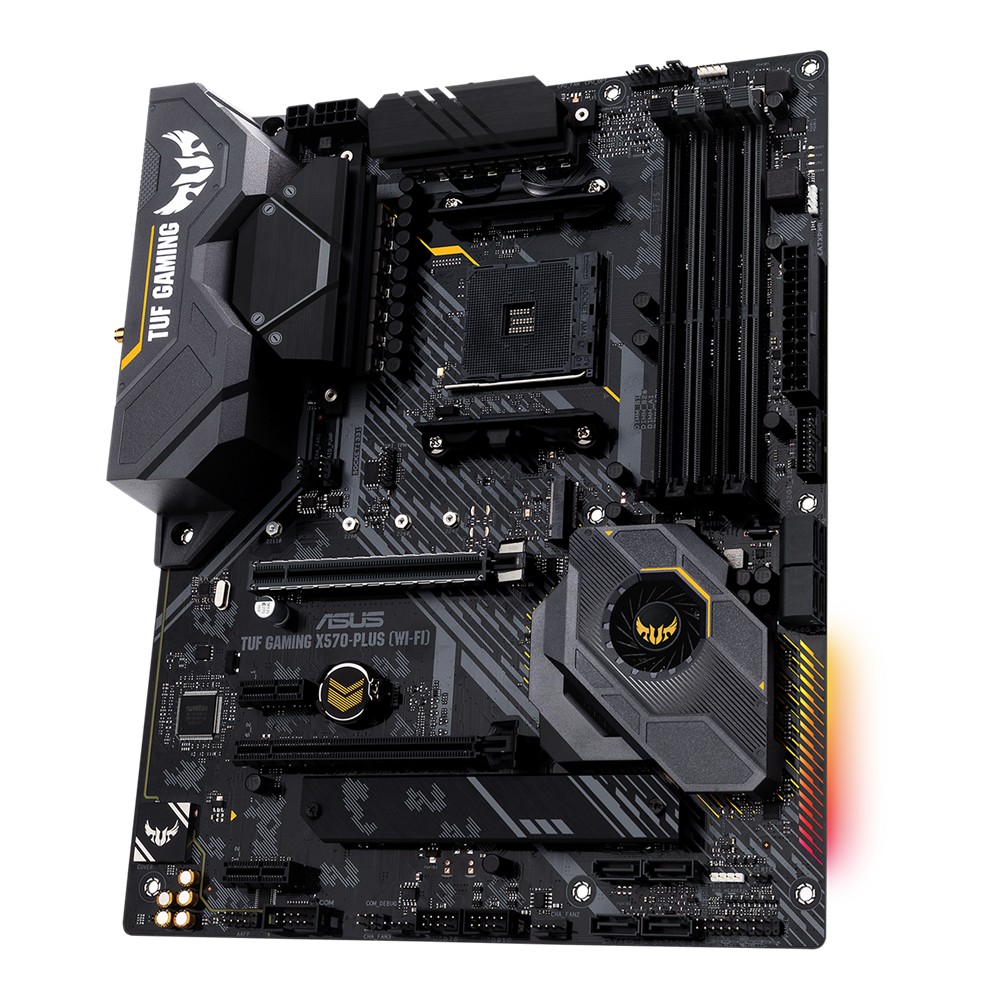

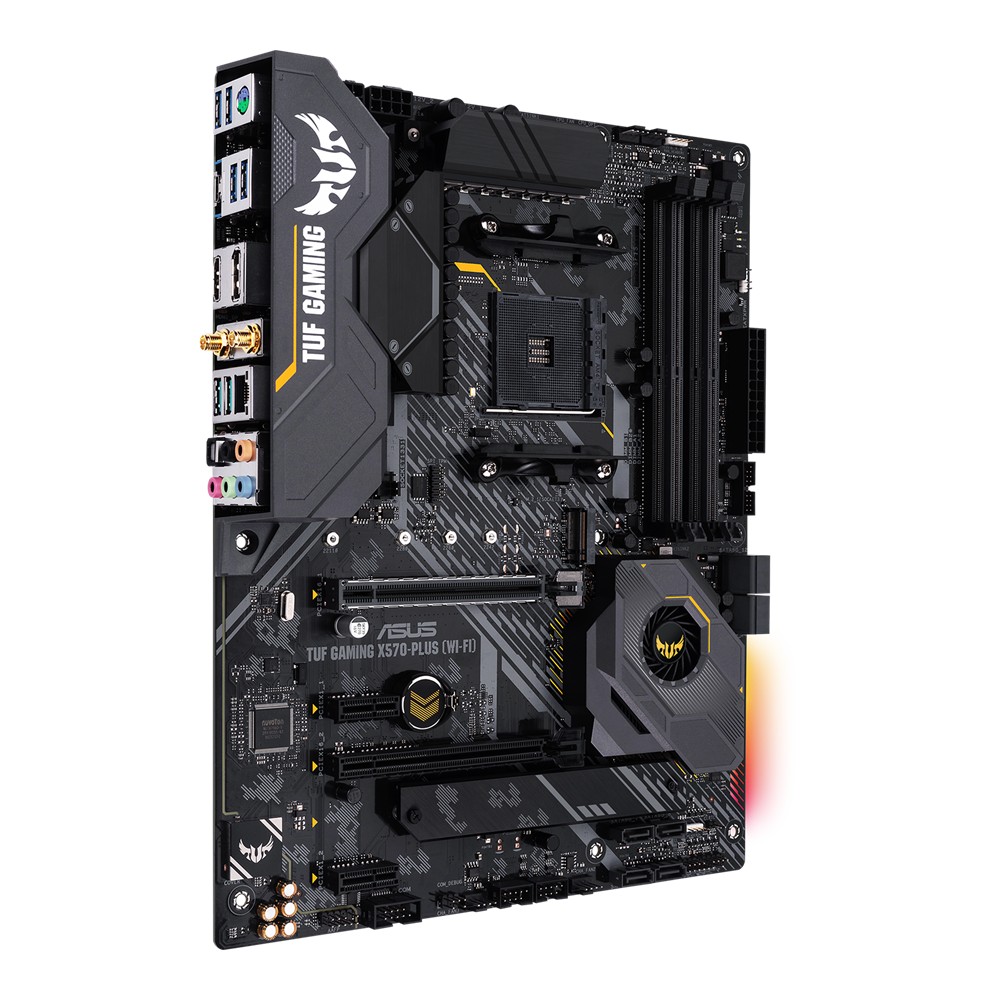

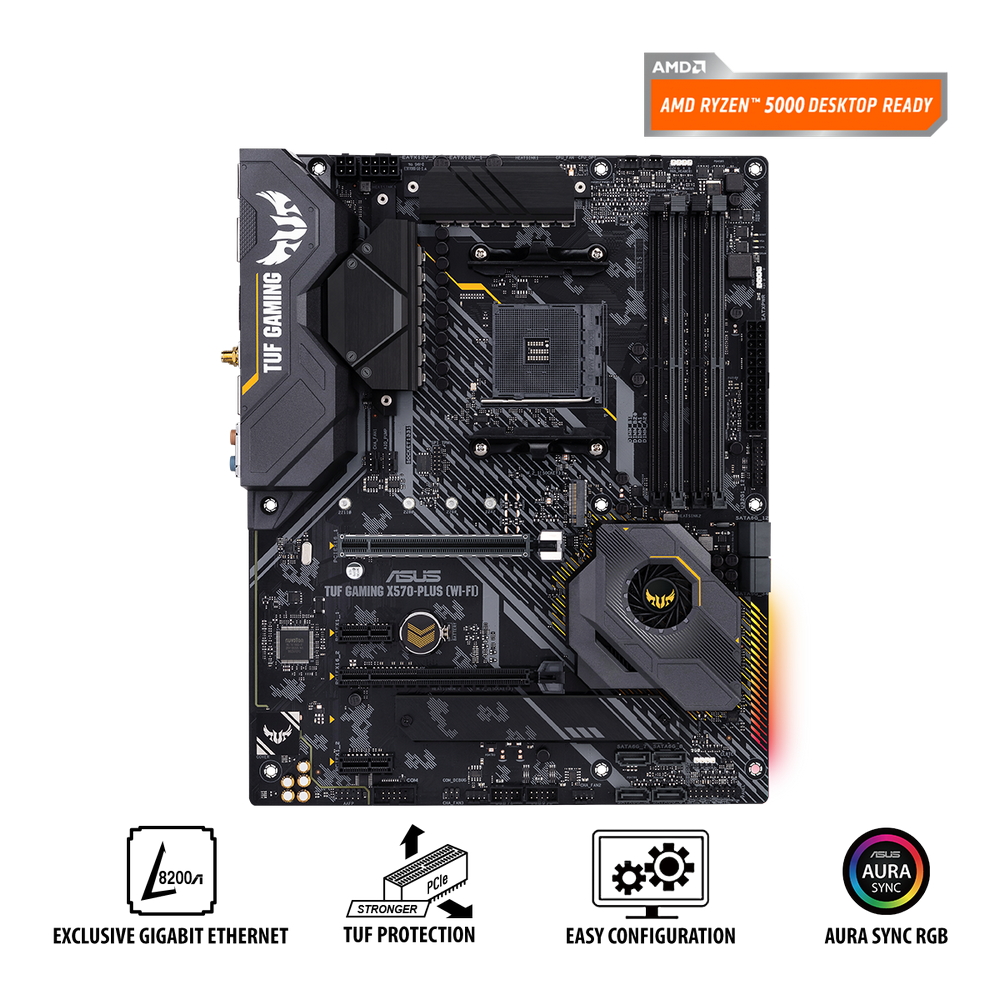

// CPU AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics /3rd Gen AMD Ryzen™ Processors Chipset AMD X570 Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture Graphic Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz Multi-GPU Support Supports AMD CrossFireX™ Technology Expansion Slots 1 x PCIe 4.0 x16 (x16 mode) or 1 x PCIe 3.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (max at x4 mode) 3 x PCIe 4.0 x1 Storage 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) or (PCIE 3.0 x4 and SATA modes) 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 LAN Realtek® L8200A TUF LANGuard Wireless Data Network Intel® Wireless-AC 9260 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Bluetooth Bluetooth® 5.0 Audio Realtek® ALC S1200A 8-Channel High Definition Audio CODEC USB Ports 4 x USB 3.2 Gen 1 port(s) (4 at back panel, ) 3 x USB 3.2 Gen 2 port(s) (3 at back panel, , 2 x Type-A+1 x USB Type-C®) 2 x USB 3.2 Gen 1 port(s) (2 at mid-board) 4 x USB 2.0 port(s) (4 at mid-board)
