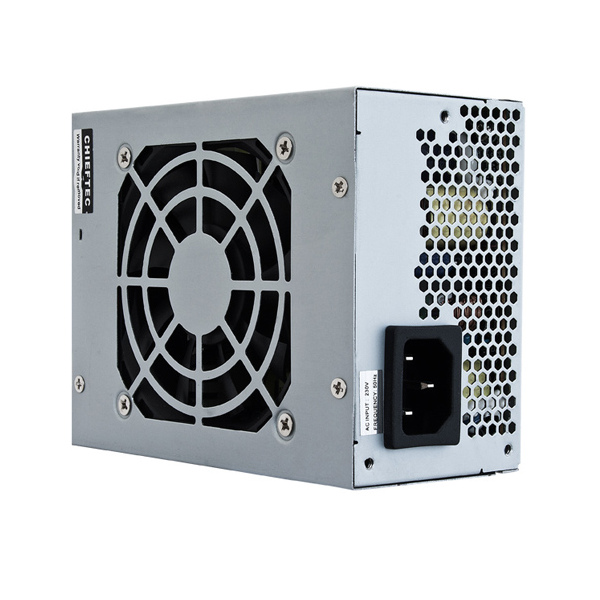

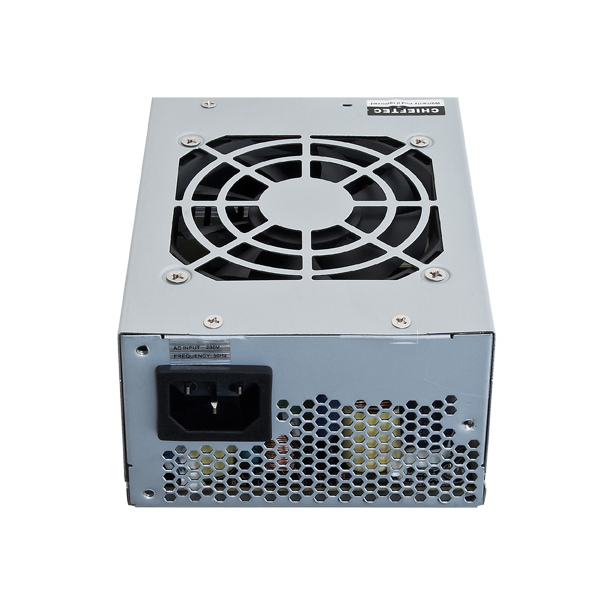

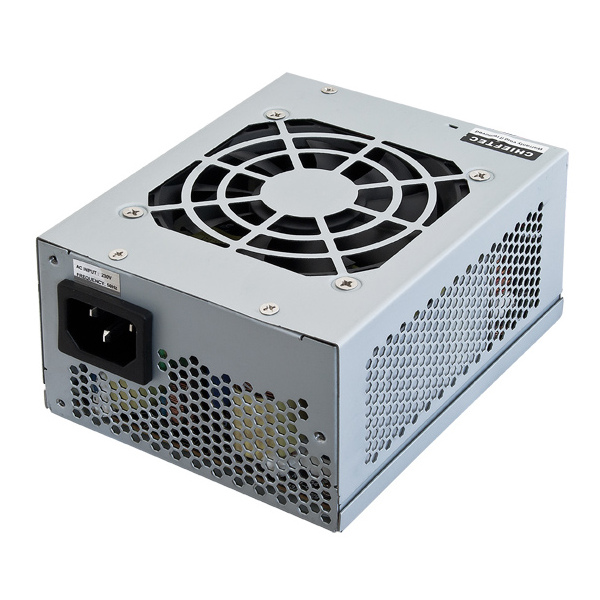

. TECHNICAL DATA Model SMART 350W Article no. SFX-350BS-L EAN code 4710713230347 Weight (without/with package) AC Input 230V / 3A Frequency 50 Hz +5V 15A +3,3V 16A +5V & +3,3V combined 105W +12V1 27A +12V2 - +12V1, +12V2 combined 324W P.F. >0,9 -12V 0,3A / 3,6W +5VSB 3,0A / 15W Maximum Power 350W Connectors 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) SATA 2 MOLEX/FLOPPY 2/1 Cable length (mm) 20+4 PIN ATX 300 8 PIN EPS(4+4) 400 8 PIN PCIe (6+2) SATA 300/150 MOLEX/FLOPPY 300/150/150 Features ATX12V Version ATX 12V 2.3 Efficiency >85% Dimension (DxWxH) 100 mm x 125 mm x 64 mm PFC Active PFC (0,9) Fan 80mm silent fan Security AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
